Beelink EX Mate Studio 80Gbps SSD Enclosure for Mac Studio

The Beelink EX Mate Studio is a dual-SSD storage enclosure designed and dimensioned specifically to sit underneath (or alongside) an Apple Mac Studio — matching its footprint so precisely that it looks like a factory accessory rather than a third-party add-on. Connect it over an 80Gbps USB-C link and you’ve added up to 16TB of genuinely fast NVMe storage without opening your Mac Studio or hanging a mismatched external drive off the back of your desk.

Key Features

• 80Gbps USB-C Connection — The latest-generation USB-C interface delivers up to 80Gbps of throughput — double the bandwidth of USB4/Thunderbolt 3/4 — keeping large-file workflows genuinely fast rather than link-limited.
• Dual M.2 PCIe 4.0 x2 SSD Slots, Up to 16TB — Two independent M.2 2280 slots (up to 8TB each) support PCIe 3.0, 4.0, and 5.0 SSDs, with Beelink officially rating read speeds up to 3,600MB/s.

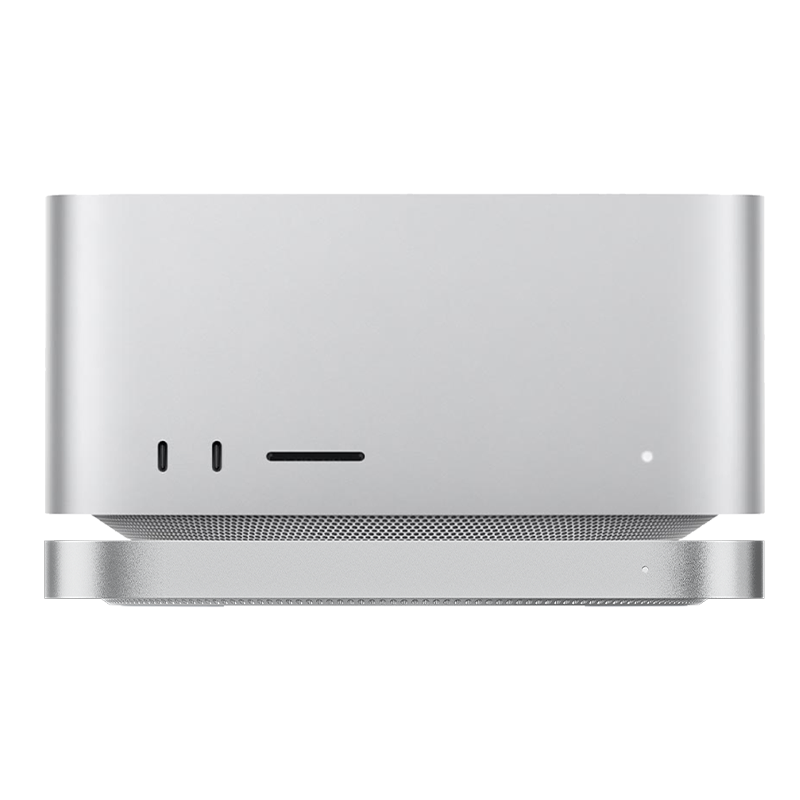

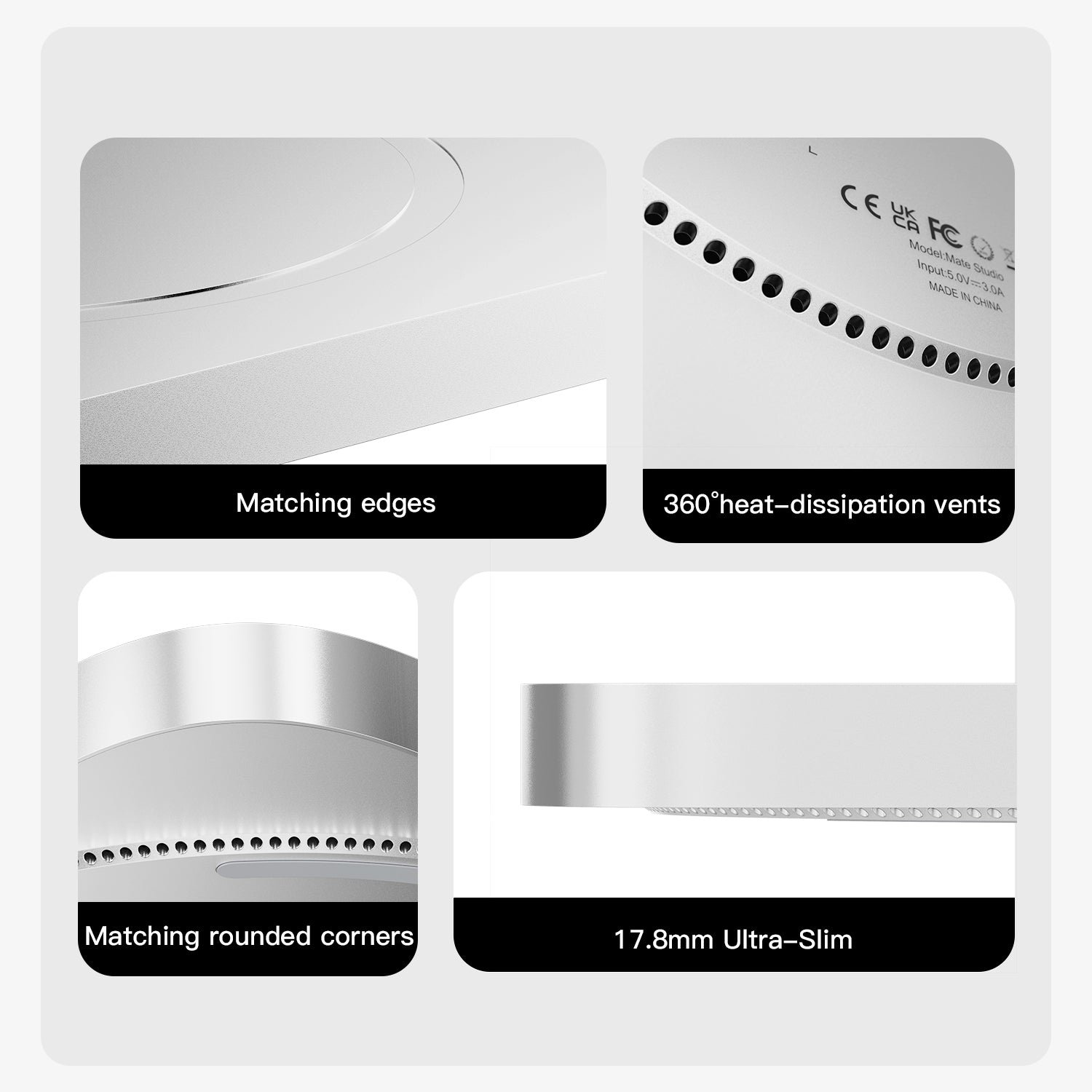

• Mac Studio-Matched Design — A 197 x 197mm footprint precisely mirrors the Mac Studio’s base, with a slim 17.8mm profile that keeps your desk setup visually clean rather than adding a mismatched box.
• Hassle-Free Bus Power — SSDs drawing under 15W combined pull power directly from your Mac Studio over the same USB-C cable — no separate power brick, no extra cord.
• Extended Power Support — An integrated USB-C PD input accepts an external PD 3.0 adapter (15W or higher, such as a standard phone charger) for higher-draw SSD configurations.
• Aluminum Alloy Construction — A Frost Silver aluminum enclosure that matches Apple’s own material language rather than looking like an off-brand accessory.
• Included 80Gbps Cables — Ships with USB-C to USB-C cables rated for the full 80Gbps link speed, so you get full performance out of the box.

Real Storage Expansion for a Mac That Can’t Be Opened

The Mac Studio doesn’t offer user-upgradeable internal storage, which leaves external expansion as the only real option once you’ve filled its internal SSD. The EX Mate Studio is built specifically to answer that: two independent M.2 slots running at genuine PCIe 4.0 x2 speeds, rated by Beelink at up to 3,600MB/s reads — fast enough for professional video workflows, large RAW photo libraries, and project archives that would choke a typical USB external drive.

Because the enclosure is dimensioned to match the Mac Studio’s own footprint, it becomes part of your desk setup rather than a cable-tethered box sitting somewhere awkward. And with power delivery handled intelligently — lower-draw SSDs bus-powered directly from the Mac Studio, higher-draw configurations supported via a simple PD adapter — there’s no complicated setup involved. One practical tip if you’re pairing this with a Windows PC rather than a Mac Studio: enabling “Write Caching” in Windows Device Manager for the drive gets you the enclosure’s full rated performance.

One honest note on data protection: if you configure both SSD slots together, any RAID striping is handled in software only — there’s no hardware RAID controller, so a single drive failure means the whole array is lost. Treat the EX Mate Studio as fast expansion storage or scratch space, and keep your critical files backed up elsewhere, exactly as you should with any RAID 0-style configuration. Every unit ships from our UK warehouse with 1–3 day processing, and orders over $199 qualify for free shipping.

Specifications

• Host compatibility: Apple Mac Studio (also works with any Thunderbolt 3/4/5 or USB4-equipped Mac, PC, or mini PC)
• Host connection: USB-C, up to 80Gbps data transfer
• Storage: Dual M.2 2280 PCIe 4.0 x2 SSD slots (supports PCIe 3.0/4.0/5.0 drives), up to 8TB per slot, 16TB total

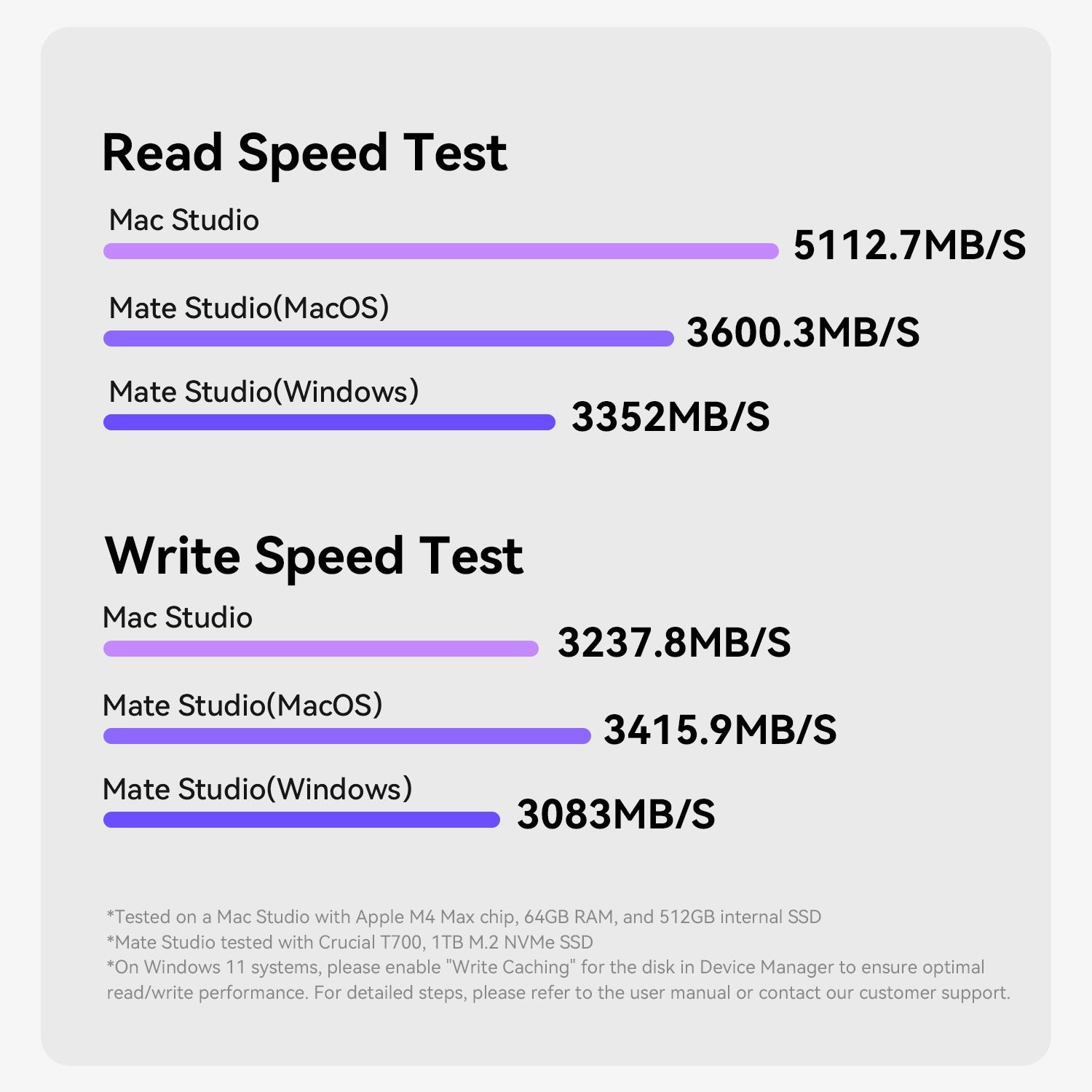

• Rated performance: Up to 3,600MB/s read (tested with Crucial T700 NVMe SSD)
• Power: Bus-powered under 15W combined from host; USB-C PD3.0 input for higher-draw configurations (15W+ adapter, not included)
• Build: Aluminum alloy, Frost Silver finish
• Dimensions: approx. 197 x 197 x 17.8mm, matched to Mac Studio footprint
• Weight: approx. 430g
• Included accessories: 2x USB-C to USB-C cables rated for 80Gbps
• RAID: Software RAID 0 striping supported across both slots (no hardware RAID, no redundancy — back up critical data separately)
